Predicting Code Comprehension using Eye-Tracking

Sourcing Code

Eye-Tracking

Neural Network

Bachelor Thesis by Tarek Alakmeh
Supervisior: Prof. Dr. Thomas Fritz
Advisor: Prof. Dr. Lena Jäger
Advisor: David Reich

2022, University of Zurich

Eye-Tracking Code Example:

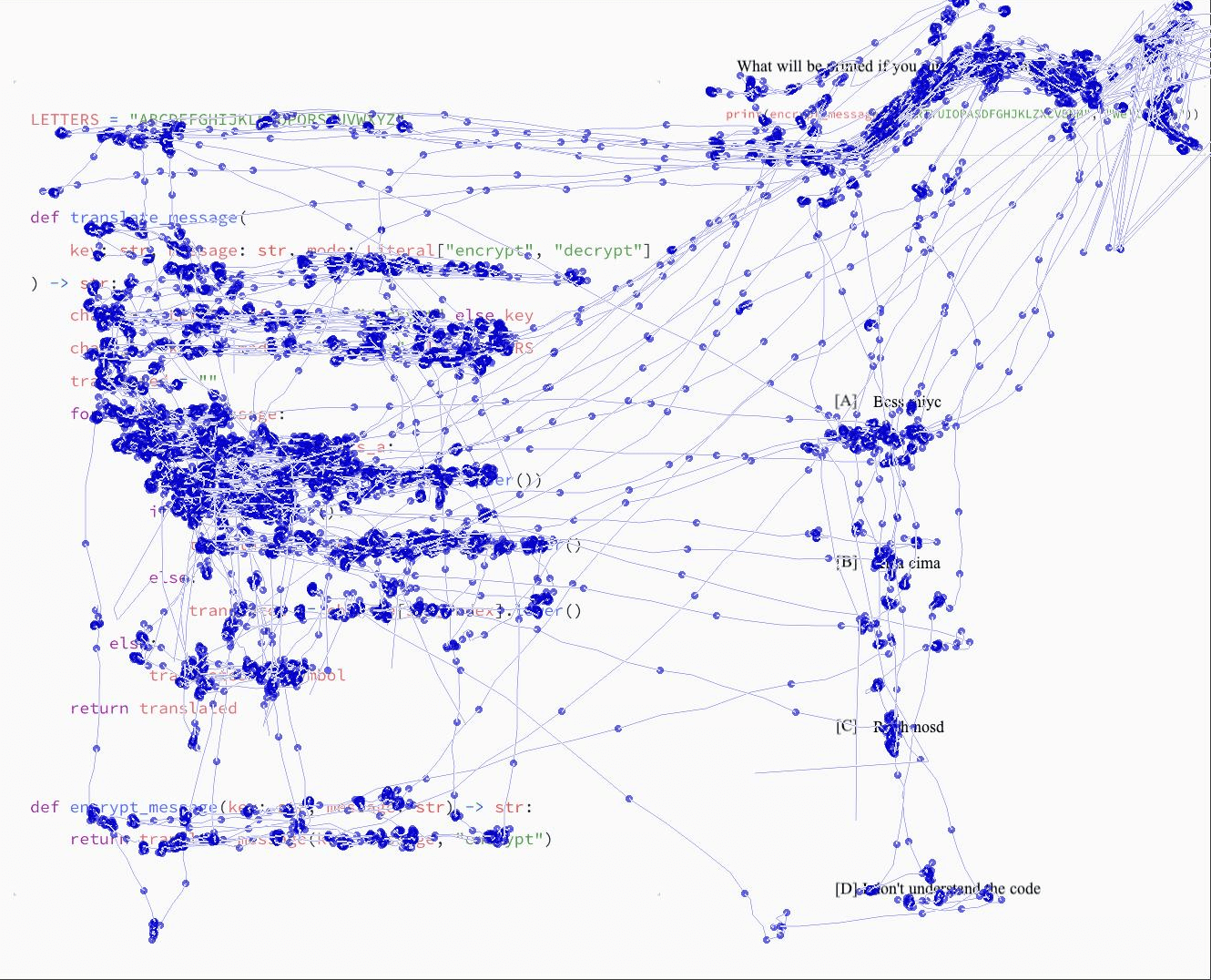

Aggregated fixations of participants reading code
(green = understanding, purple = non-understanding)

GOAL

Predict Code Comprehension and
the difficulty thereof.

WHY?

Existing code complexity metrics
are outdated and flawed.

e.g. Cyclomatic Complexity [McCabe, 1976] ,
Halstead complexity measures [Halstead, 1977]

Example of two code snippets with equal cyclomatic complexity but vastly different human comprehensibility.

Source: SonarSource

Human-Inclusive Code Evaluation System

a solution using Neural Networks & Eye-Tracking

Procedure

1. Source Code Snippets

Procedure

1. Source Code Snippets

2. Setup & Conduct Eye-Tracking Experiment

Procedure

1. Source Code Snippets

2. Setup & Conduct Eye-Tracking Experiment

3. Analyze Data & Train Neural Network

1. Source Code Snippets

Diverse & Real-World Code

1. Source Code Snippets

Diverse & Real-World Code

Previous Studies

Text-Book Examples

Open Source Repositories

Proprietary Industry Code

1. Source Code Snippets

Diverse & Real-World Code

from

Open Source Repositories

50'000 most popular Python
Code Snippets

Initial Phase (Retrieval)

20'000 Code Snippets

2nd Phase (filter out too long/short snippets)

NONE

LOOP

RECURSION

BOTH

AST Walker Segmentation Random Sampling

3rd Phase (segment data into 4 categories)

NONE

LOOP

Alternative: Raw Random Sampling

25%

AST Walker Segmentation Random Sampling

3rd Phase (segment data into 4 categories)

25 Random Snippets per Category

3rd Phase (sampling from segments)

Manual Inspection & Validation Survey

9 Final Code Snippets

AST Walker Segmented Sampling

Raw Sampling

9 Final Code Snippets

1. Source Code Snippets

2. Setup & Conduct Eye-Tracking Experiment

3. Analyze Data & Train Neural Network

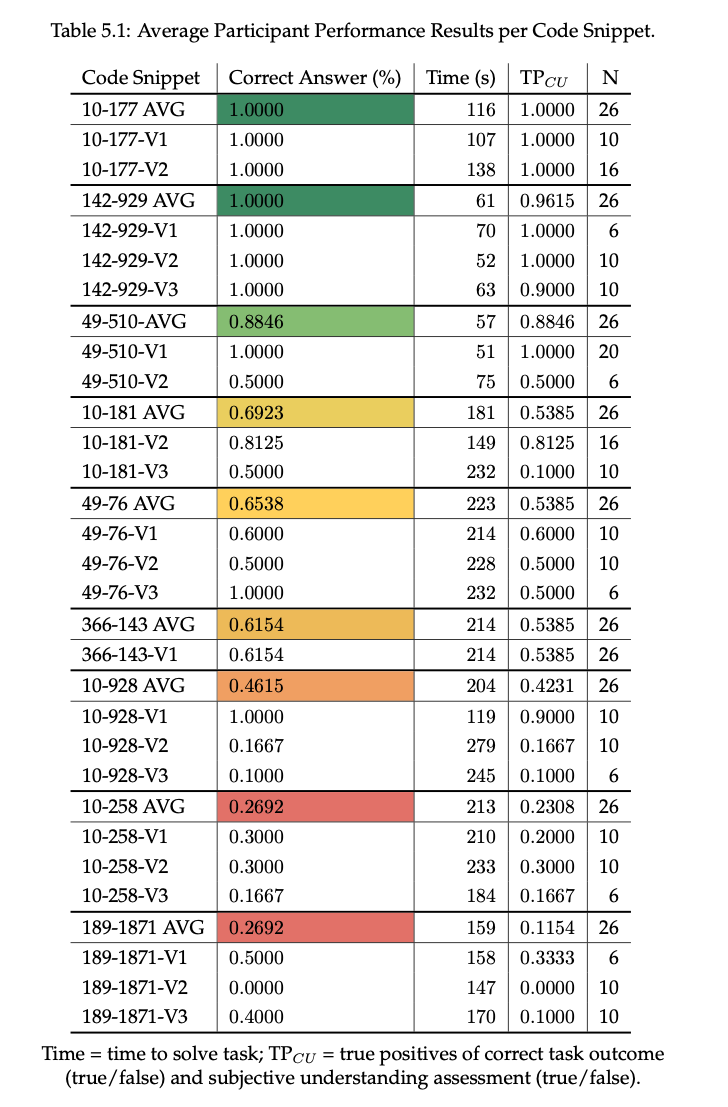

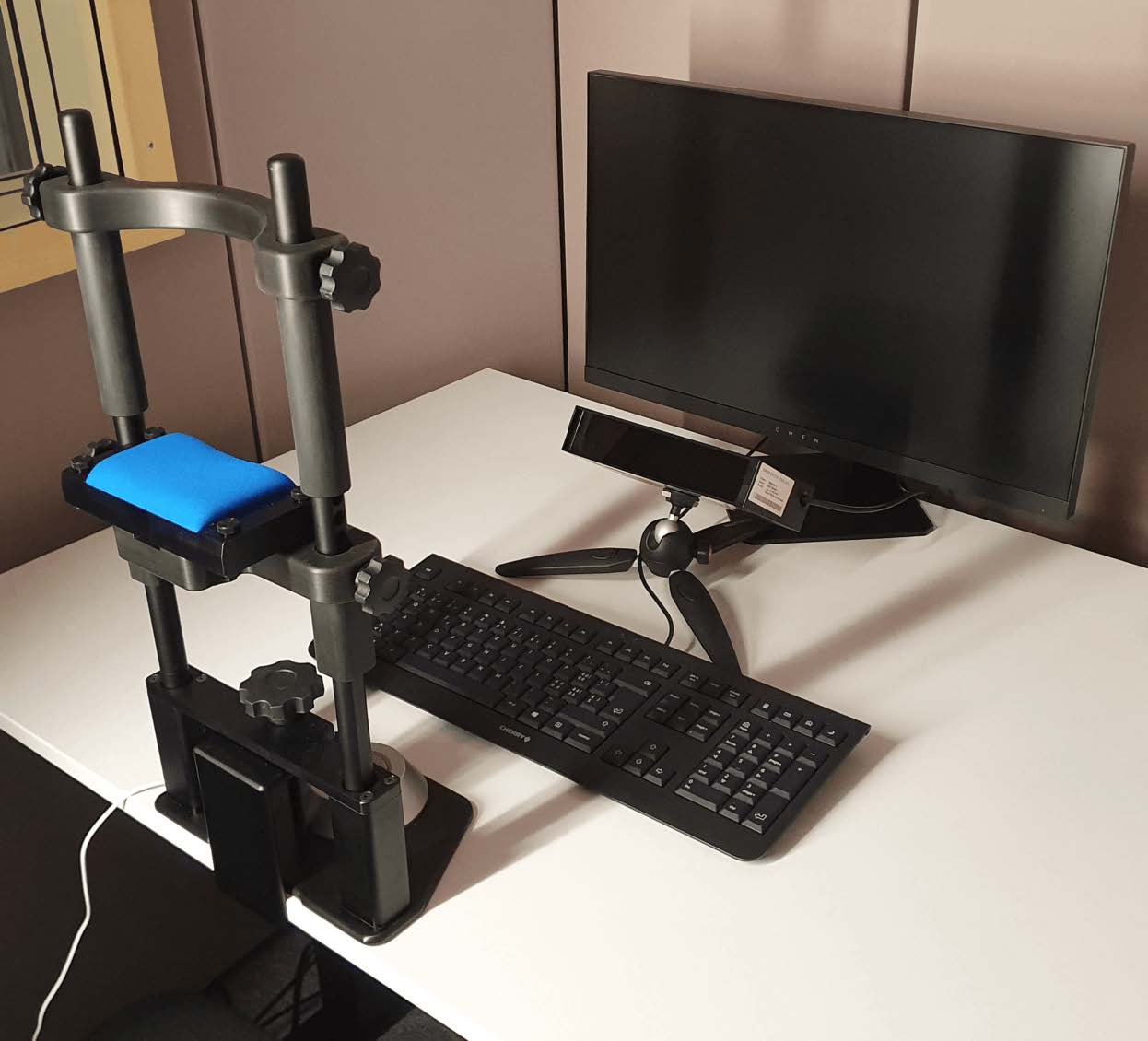

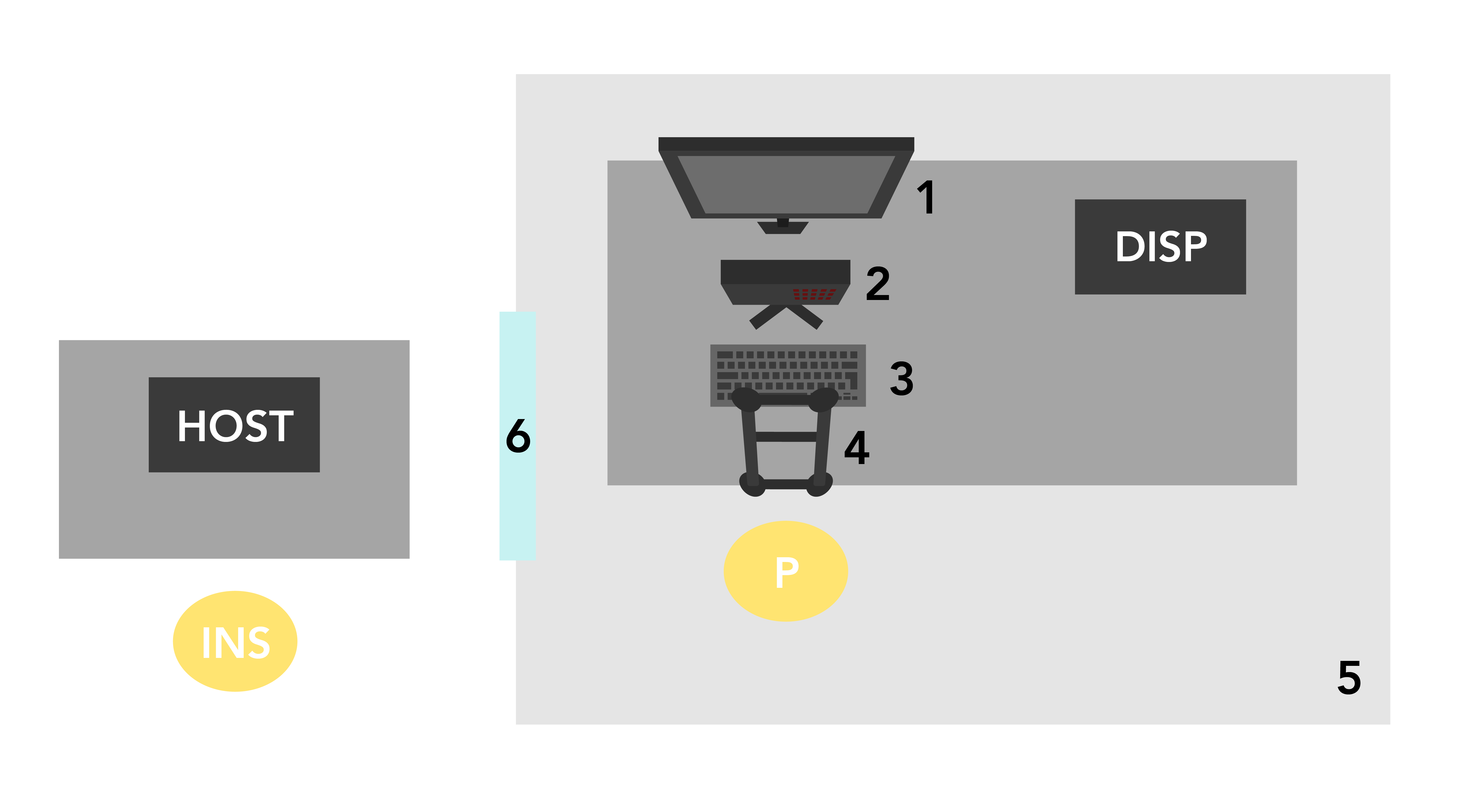

2. Setup & Conduct Eye-Tracking Experiment

1. Source Code Snippets

2. Setup & Conduct Eye-Tracking Experiment

3. Analyze Data & Train Neural Network

Reading behaviours

Reading behavior

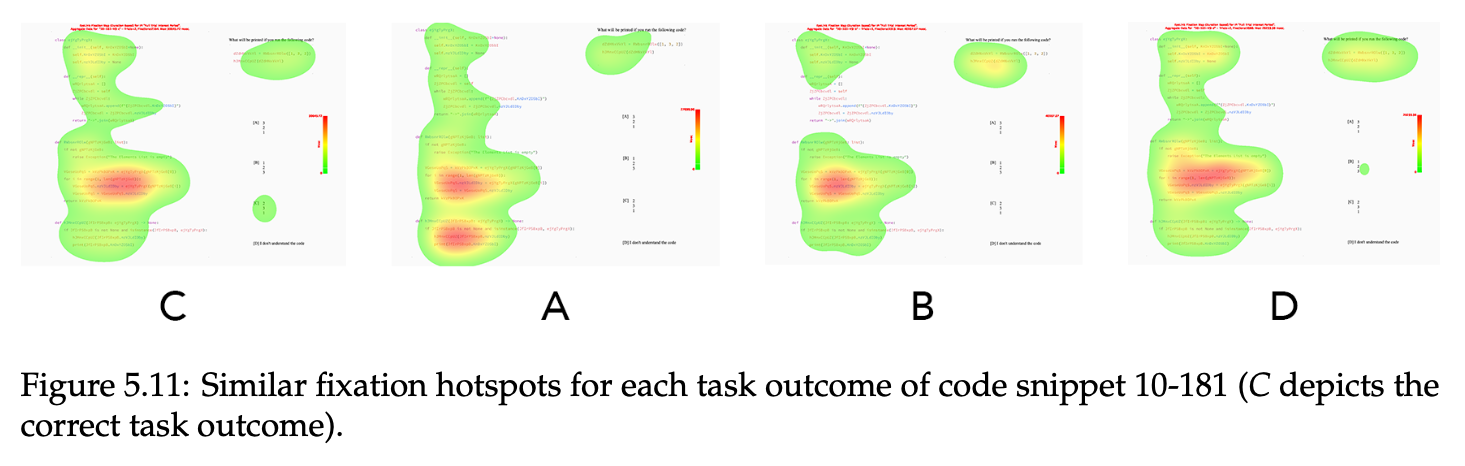

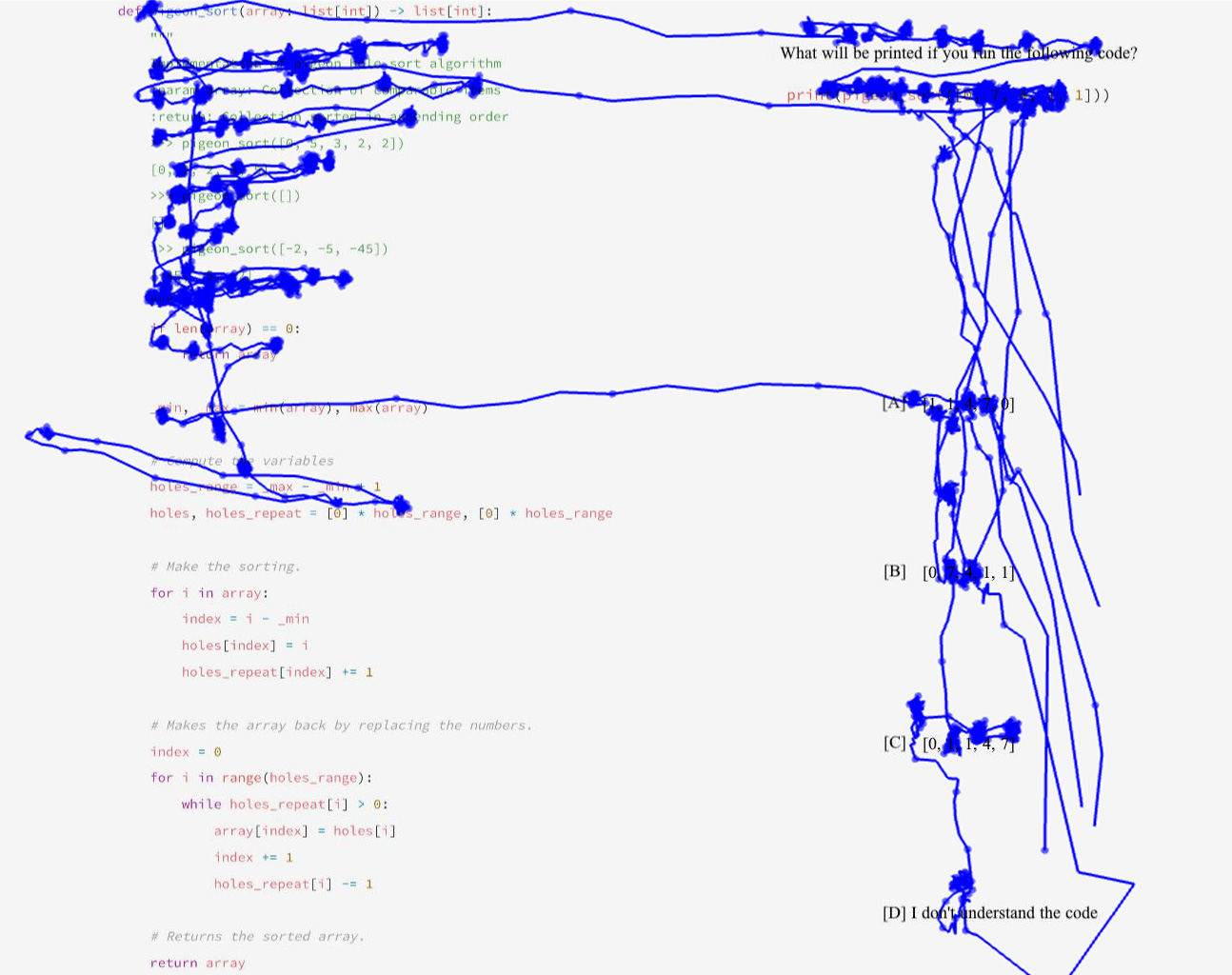

Some participants only used function naming + comments
to understand code

While others examined the code line-by-line in a bottom-up fashion
to understand code

Reading behavior

Using the eye's fixations and attributes as input to the neural network

INPUT LAYER

DROPOUT LAYER

NORMALIZATION LAYER

DENSE LAYER

Neural Network Architecture

Neural Network Performance

Cross Validation over New Participants / New Code Snippets

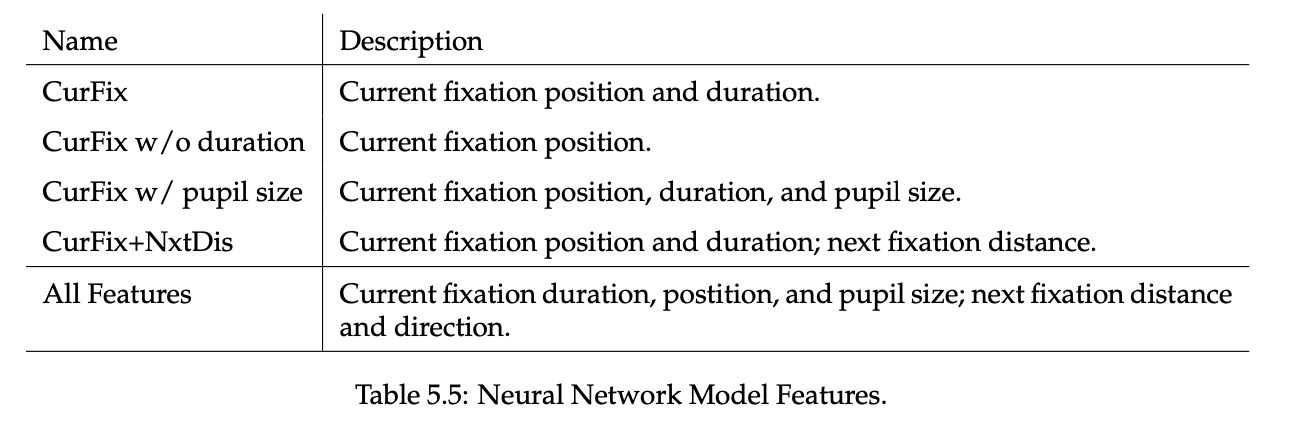

Model Descriptions

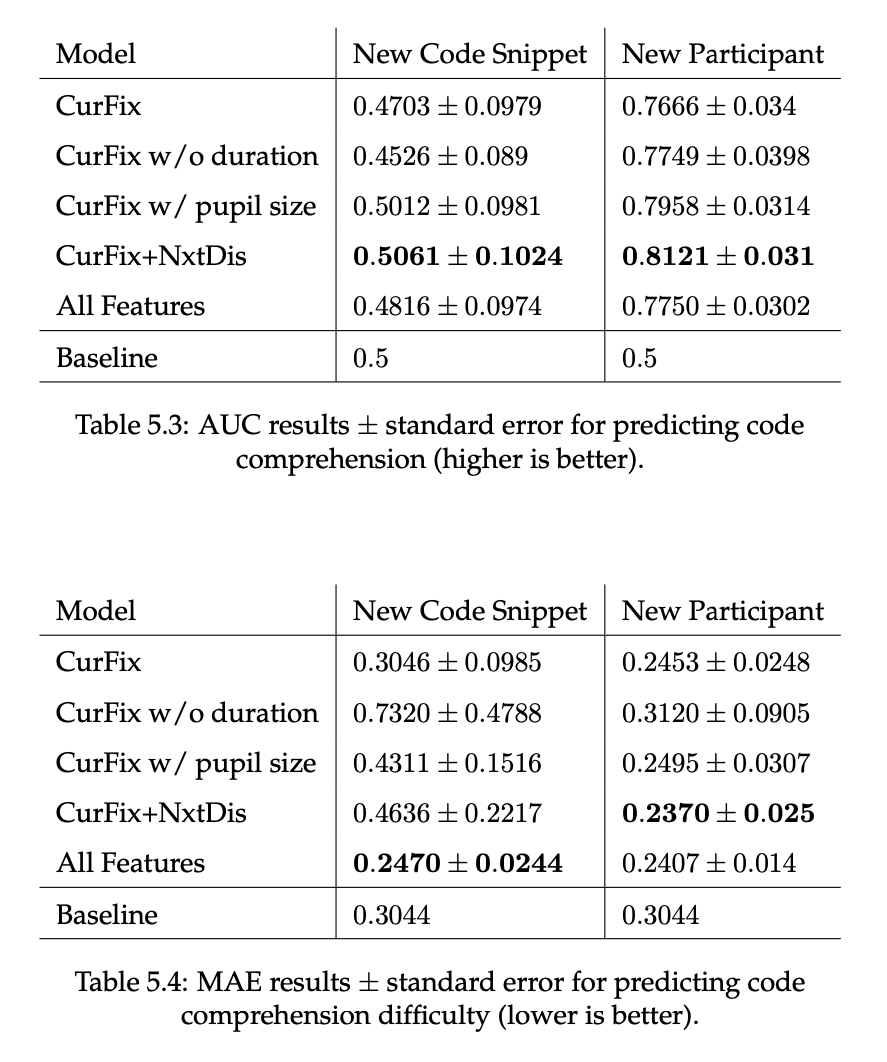

Neural Network Performance

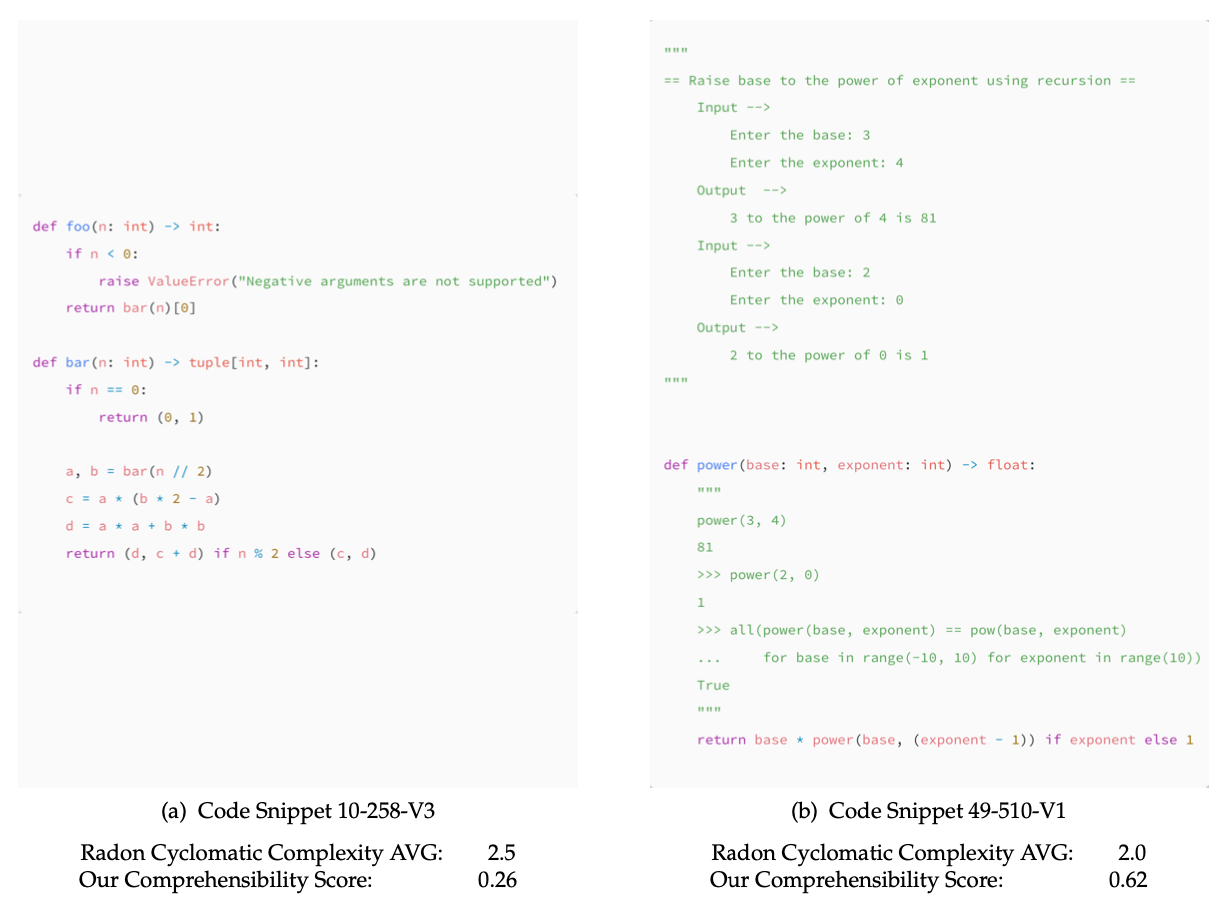

Cyclomatic Complexity vs. Our Comprehensibility Score

Future Work


		def fibonacci(n: int) -> int:
			"""
			return F(n)
			>>> [fibonacci(i) for i in range(13)]
			[0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144]
			"""
			if n < 0:
				raise ValueError("Negative arguments are not supported")
			return _fib(n)[0]


		# returns (F(n), F(n-1))
		def _fib(n: int) -> tuple[int, int]:
			if n == 0:  # (F(0), F(1))
				return (0, 1)

			# F(2n) = F(n)[2F(n+1) − F(n)]
			# F(2n+1) = F(n+1)^2+F(n)^2
			a, b = _fib(n // 2)
			c = a * (b * 2 - a)
			d = a * a + b * b
			return (d, c + d) if n % 2 else (c, d)


		def fibonacci(n: int) -> int:
			"""
			return F(n)
			>>> [fibonacci(i) for i in range(13)]
			[0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144]
			"""
			if n < 0:
				raise ValueError("Negative arguments are not supported")
			return _fib(n)[0]


		# returns (F(n), F(n-1))
		def _fib(n: int) -> tuple[int, int]:
			if n == 0:  # (F(0), F(1))
				return (0, 1)

			# F(2n) = F(n)[2F(n+1) − F(n)]
			# F(2n+1) = F(n+1)^2+F(n)^2
			a, b = _fib(n // 2)
			c = a * (b * 2 - a)
			d = a * a + b * b
			return (d, c + d) if n % 2 else (c, d)


		def fibonacci(n: int) -> int:
			"""
			return F(n)
			>>> [fibonacci(i) for i in range(13)]
			[0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144]
			"""
			if n < 0:
				raise ValueError("Negative arguments are not supported")
			return _fib(n)[0]


		# returns (F(n), F(n-1))
		def _fib(n: int) -> tuple[int, int]:
			if n == 0:  # (F(0), F(1))
				return (0, 1)

			# F(2n) = F(n)[2F(n+1) − F(n)]
			# F(2n+1) = F(n+1)^2+F(n)^2
			a, b = _fib(n // 2)
			c = a * (b * 2 - a)
			d = a * a + b * b
			return (d, c + d) if n % 2 else (c, d)

Eye-Tracking Data mapped onto Code


		def fibonacci(n: int) -> int:
			"""
			return F(n)
			>>> [fibonacci(i) for i in range(13)]
			[0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144]
			"""
			if n < 0:
				raise ValueError("Negative arguments are not supported")
			return _fib(n)[0]


		# returns (F(n), F(n-1))
		def _fib(n: int) -> tuple[int, int]:
			if n == 0:  # (F(0), F(1))
				return (0, 1)

			# F(2n) = F(n)[2F(n+1) − F(n)]
			# F(2n+1) = F(n+1)^2+F(n)^2
			a, b = _fib(n // 2)
			c = a * (b * 2 - a)
			d = a * a + b * b
			return (d, c + d) if n % 2 else (c, d)

Eye-Tracking Data mapped onto Code

e.g. by using a Transformer architecture

Human-Inclusive Code Evaluation System

just using code as input being the final goal

Questions?

Github Repo
